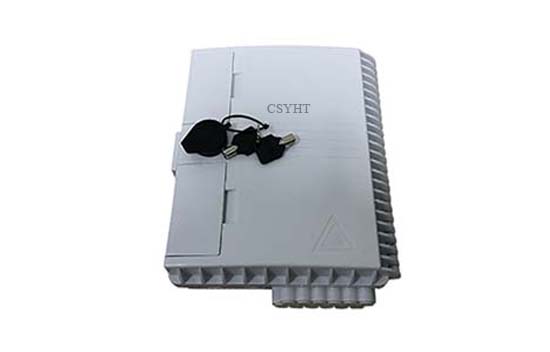

12FO fiber optic FTTH box B0212A

Product specifications

Model: B0212A
(Internal model: OTB-0212-A)
Dimension(mm): 209.5x260.5x95
Material: PP plastic
Adapter port: 12pcs SC simplex
Max. capacity: 12 fibers
Max. qty of splice tray: 1pc
Max. capacity of splice tray: ?12 fibers
Color: ?white
Can load 1pc PLC 1:8 steel tube type splitter
Application: outdoor wall mounted, pole mounted

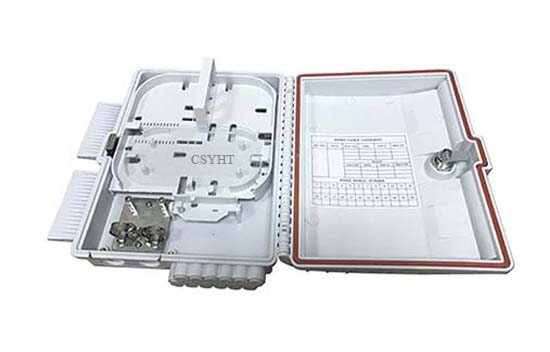

Product details

Fiber?optic?terminal?box?is?available?for?the?distribution?and?terminal?connection?of?various?kinds?of?optical?fiber?system,?especially?suitable?for?mini-network?terminal?distribution,?in?which?the?optical?cables,?patch?cords?or?pigtails?are?connected. ?
